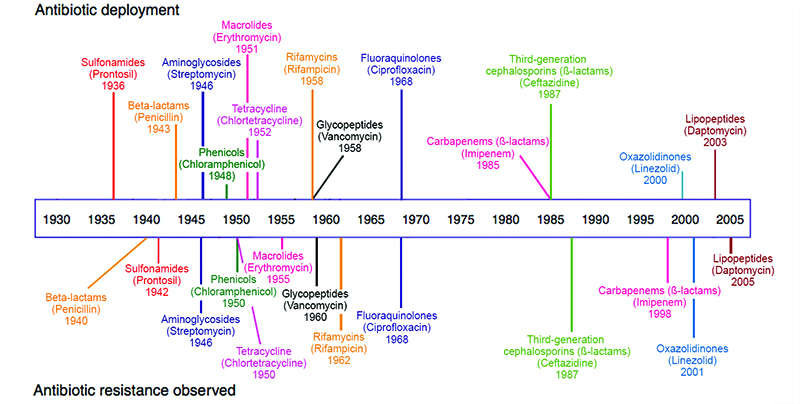

Figure _unit7.3.2 Figure 5 Timeline of introduction and resistance, showing the main antibiotic classes. Introduction (or deployment) of each antibiotic class is shown above the timeline. The date when resistance was first observed for each class is shown below the timeline.
