5 Forming planets: using models

In the previous section, you met the ‘coefficient of restitution’, ‘translational energy’ (or kinetic energy) and ‘rotational energy’.

The ‘coefficient of restitution’ can take values between 0 and 1 where:

  • 0 means a perfectly inelastic collision where the particles have no relative velocity after the collision and they stick together
  • 1 means a perfectly elastic collision, where the particles move away from each other after the collision as fast as they were moving towards each other before it.

Equation 1 shows the ratio of final relative velocity to initial relative velocity as the coefficient of restitution.

equation left hand side Coefficient of rest times i times t times u times t times ion equals right hand side final velocity divided by initial velocity
Equation label: Equation 1

In this case, highly inelastic collisions are key to understanding planet formation. As you saw in Video 4, these collisions show that the particles behave more like crashing cars than snooker balls!

Now look at Table 3 which lists the data obtained from a collision experiment (precise to up to 6 significant figures).

Table _unit7.6.1 Table 3 Data obtained from a collision experiment
Velocity before collision Coefficient of restitution
0.394340 +/- 0.005249 0.312340 +/- 0.007026
0.404975 +/- 0.005254 0.430552 +/- 0.008426
0.417616 +/- 0.005249 0.472011 +/- 0.010388
0.418179 +/- 0.006828 0.527789 +/- 0.013723
0.335328 +/- 0.004141 0.354709 +/- 0.006535
0.418685 +/- 0.004471 0.870707 +/- 0.012637

You can see that, to 2 significant figures, the velocities before the collisions range between 0.34 m/s and 0.42 m/s.

The final velocities achieved in the experiment gave the results for the coefficients of restitution by using Equation 1 and the data in the experiment. The coefficients of restitution have therefore been calculated from the values of the final velocities and, to 2 significant figures, they range between 0.31 and 0.87. Figure 6 shows the data from Table 3 as a graph.

Described image

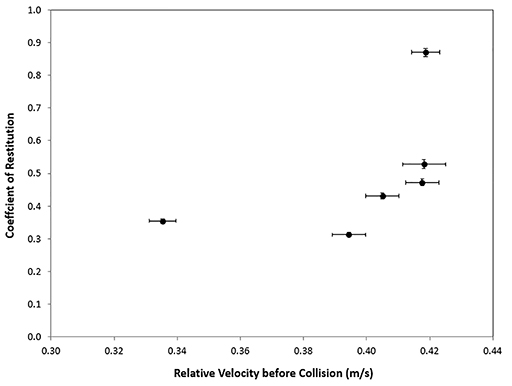

Figure _unit7.6.1 Figure 6 Graph of the coefficient of restitution against the relative velocity before collision.

Note that the horizontal lines are the ‘error bars’. These correspond to the +/- values in Table 3.

ITQ _unit7.6.1

  • Can you deduce a relationship between the relative velocity before collision and the coefficient of restitution from the graph?

  • It seems that, for lower values of relative velocity greater than the collision (0.34 m/s), the coefficient of restitution also takes lower values (0.3).

    This may be constant for values of relative velocity between the collision between 0.34 m/s and 0.40 m/s.

    However, as the relative velocity values after the collision increase beyond 0.40 m/s, the values of the coefficient of restitution increase quickly up to 0.90.

Now complete Activity 7.

Activity _unit7.6.1 Activity 7 Calculating the final velocities of the particles

Timing: Allow approximately 10 minutes

Calculate the values of the final velocities to 3 significant figures in the table below. (Hint: look at Equation 1 and rearrange it in terms of the final velocity.)

Table _unit7.6.3 Table 4 Final velocities
Initial velocity (m/s) Coefficient of restitution Final velocity (m/s)
0.394 0.312
To use this interactive functionality a free OU account is required. Sign in or register.
0.405 0.431
To use this interactive functionality a free OU account is required. Sign in or register.
0.418 0.472
To use this interactive functionality a free OU account is required. Sign in or register.
0.418 0.528
To use this interactive functionality a free OU account is required. Sign in or register.
0.335 0.355
To use this interactive functionality a free OU account is required. Sign in or register.
0.419 0.871
To use this interactive functionality a free OU account is required. Sign in or register.
Words: 0
Interactive feature not available in single page view (see it in standard view).

Answer

Table _unit7.6.4 Table 4 Final velocities completed
Initial velocity (m/s) Coefficient of restitution Final velocity (m/s)
0.394 0.312 0.123
0.405 0.431 0.174
0.418 0.472 0.197
0.418 0.528 0.221
0.335 0.355 0.119
0.419 0.871 0.365

You will have found that the final velocity of the colliding objects is less than the initial velocity. The coefficient of restitution is also greater than zero which means that these particles don’t stick together.
