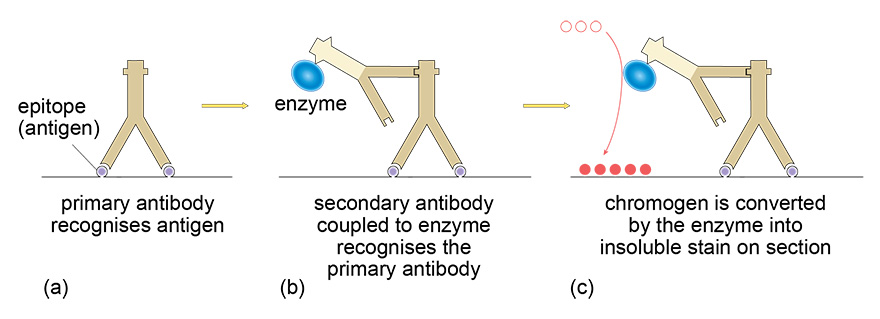

Figure 6 Principles of immunohistochemistry. (a) Unlabelled primary antibodies bind to the antigen on the section. (b) Labelled secondary antibodies bind to the primary antibodies. The secondary antibodies have an enzyme attached. (c) Chromogen is converted by the enzyme into an insoluble stain on the section.
