Periodic tiles
Imagine tiling your bathroom with square tiles. Square tiles will fit together perfectly to cover the whole wall. In fact, if you had an infinite amount of square tiles, you could use them to cover an infinite flat surface.
The downside is that the pattern is quite boring. In fact, if you take a copy of the pattern, and slide it to the right, all the tiles will line up and you have the exact same pattern as before. In other words, the pattern repeats.
You could also tile the infinite surface using triangles or hexagons and get the same result. On the other hand, if you tiled the wall using some shapes such as pentagons, there would be gaps left.
You could also tile an infinite surface using more than one shape. Here is an example that uses two shapes.
These two shapes will tile an infinite surface forever. But, again, if you shift the tiles to the right, you can see that the pattern repeats.
Tilings like this have a long history and have been used since ancient times as decorative art – from Islamic art to Roman mosaics. Tilings can be made from one or more shapes, and the tiles can be made from regular or irregular polygons. If the pattern repeats, the tiling is call periodic.
But is it possible to have a set of tiles that can cover the infinite surface such that the pattern never repeats? And if so, what would these tiles look like?
Aperiodic tiles
In 1961, Hao Wang, a Chinese mathematician and philosopher, proposed that any finite set of tiles that can cover the infinite surface must have at least one periodic tiling. So, even if the tiles have many possible patterns, there would be at least one pattern that would be periodic.
However, this was shown not to be true when Wang’s student, Robert Berger, found a set of 20,426 tiles that could be used to cover the infinite surface, without ever being periodic.
Such a set of tiles is called aperiodic because they can never form a periodic pattern.
Aperiodic tilings, like the kind found by Wang and Berger, are used in computer graphics to give surfaces texture without any noticeable patterns. However, a set of over twenty-thousand tiles is quite unwieldly, even for a computer.
Berger was then able to reduce the number of tiles from 20,426 to just 104. But could that number be reduced even further?
Well, by the late 1970s, this number was reduced to just two.
Penrose tiles
Below is a non-repeating pattern made from two tiles. These tiles cover the infinite surface but will never create a repeating pattern – they are aperiodic tiles.
This set of two tiles was discovered in 1976 by the English mathematical physicist Roger Penrose.
Penrose based his set of tiles on pentagons, which are difficult to tile even with other shapes. Penrose incorporated the same disruptive properties of the pentagon to create two tiles that form an aperiodic set.

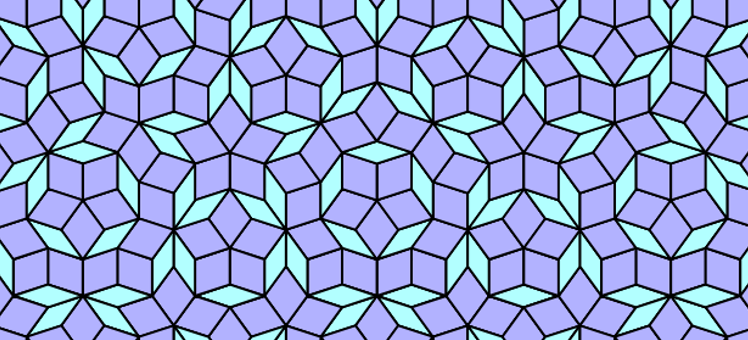

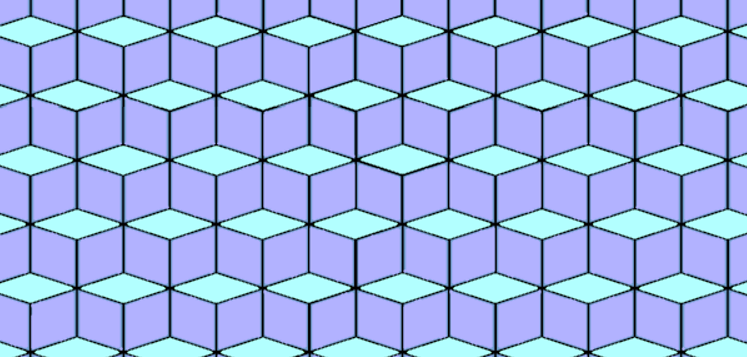

The set of Penrose tiles below, uses a thin rhombus and a fat rhombus. Ordinarily, rhombus-shaped tiles can be used to tile the infinite surface periodically, so Penrose modified the edges to eliminate repeating patterns, and so create aperiodicity.

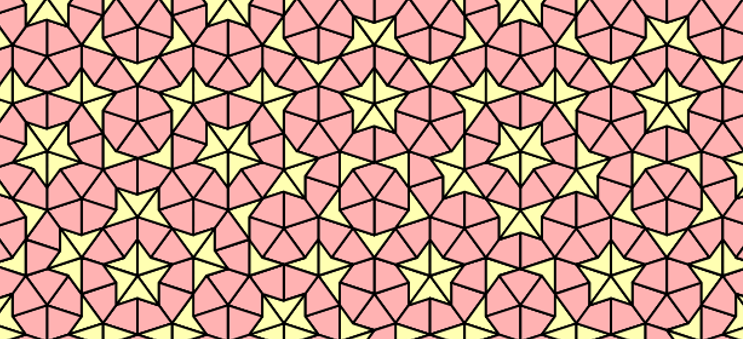

Another famous set of Penrose tiles is the kite and dart. The idea here is to match the lines, so although it’s tempting, you cannot use the kite and dart to make a rhombus. This is similar to modifying the edges to ensure aperiodicity.
With these rules, you can make non-repeating patterns like this:
Parts of a Penrose tiling have the same symmetry as a pentagon (five-fold rotational symmetry and five mirror lines of reflective symmetry). However, this is only true for finite areas (not the whole infinite tiling), and the finite areas can be quite large.
Since the discovery, Penrose tiles have been used as art and decoration in architecture, including the floor of the department of mathematics at Oxford University and at San Francisco’s transit centre.
Aperiodic tiles are also used in the study of materials with naturally aperiodic structure, known as quasicrystals. Quasicrystals have unique material properties, and applications are being investigated.
After the discovery of Penrose’s two tile sets, mathematicians started to wonder if it was possible to create an aperiodic set of tiles consisting of just one tile – an aperiodic monotile. Well, that discovery took another 45 years.
The Einstein and the spectre
Covering the infinite flat surface aperiodically with just one tile became known as the Einstein problem. Not to be confused with Albert Einstein, the term is a play on ‘ein Stein’, the German for ‘one stone’.
Although many had attempted to find the aperiodic monotile, no one succeeded until David Smith in 2023.

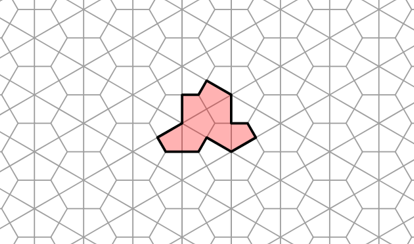

The above image shows the shape, aligned to its underlying grid.
Smith’s tile was based on the hexagon, which allows it to cover the infinite surface. But Smith also noticed that the patterns it created seemed to be aperiodic.

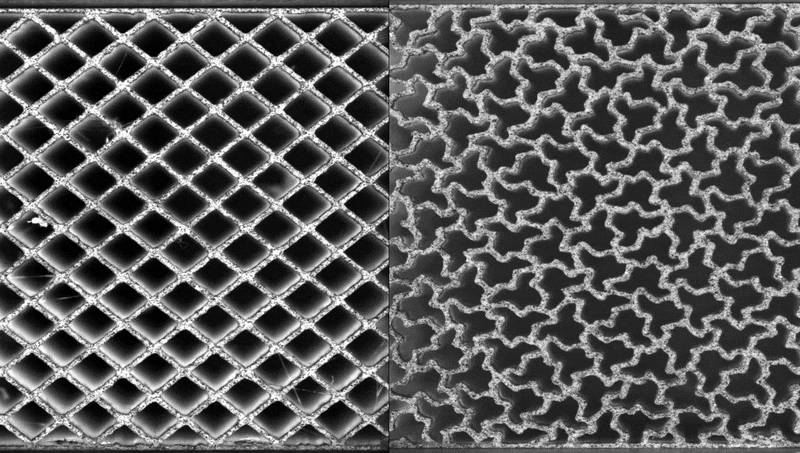

Nicknamed ‘the hat’, this tile was proved to be aperiodic in a paper by Smith, Myers, Kaplan and Goodman-Strauss (2023).

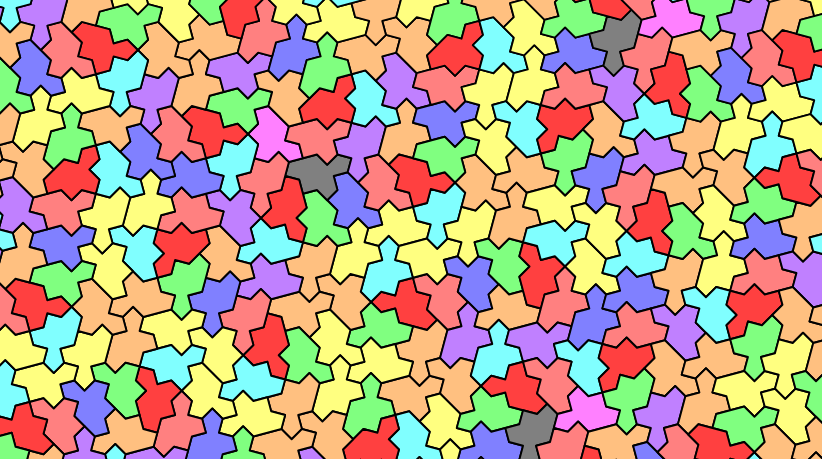

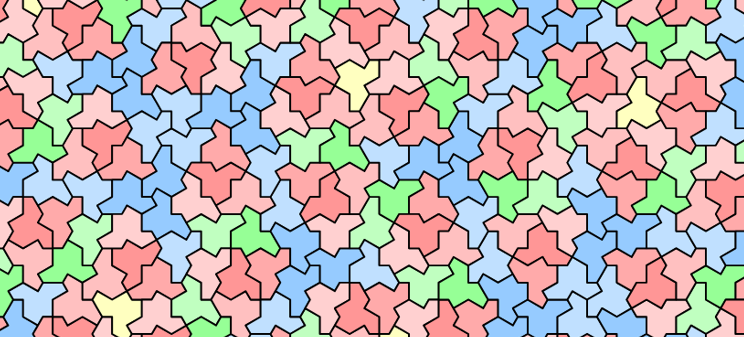

The hat tiles the infinite surface using just rotations and reflections (shown in dark red in the image below) of itself.

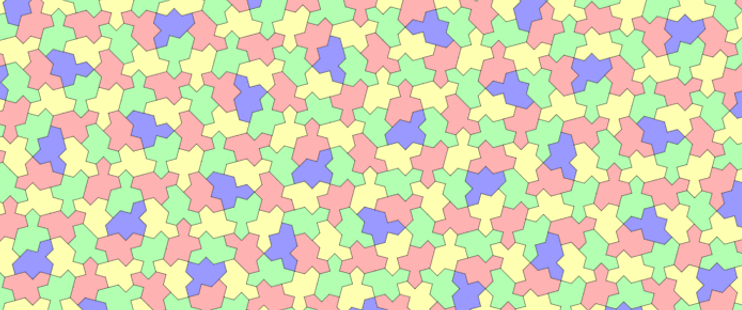

Smith and the others then went on to find a whole family of tiles like the hat, which could tile the surface in the same way. One member of this family had an extra special property. It could tile the infinite surface aperiodically, and it could do so without using reflections. This extra special tile is the spectre – because it doesn’t have a reflection.
Using the spectre, you can now tile your (infinite) bathroom, without ever repeating the pattern, and you can do so using just one shape, leaving you with a solution to the Einstein problem and one cool bathroom.
